(4-5 mm)
Car park deck coating system with separate membrane and wear coat with enhanced crack bridging properties (class B 3.2) for multi storey car parks for exposed and intermediate decks and sidewalks on bridges with pedestrian and vehicle traffic. According to EN 1504-2 and DIN V 18026, class OS 11 A / OS Fa.

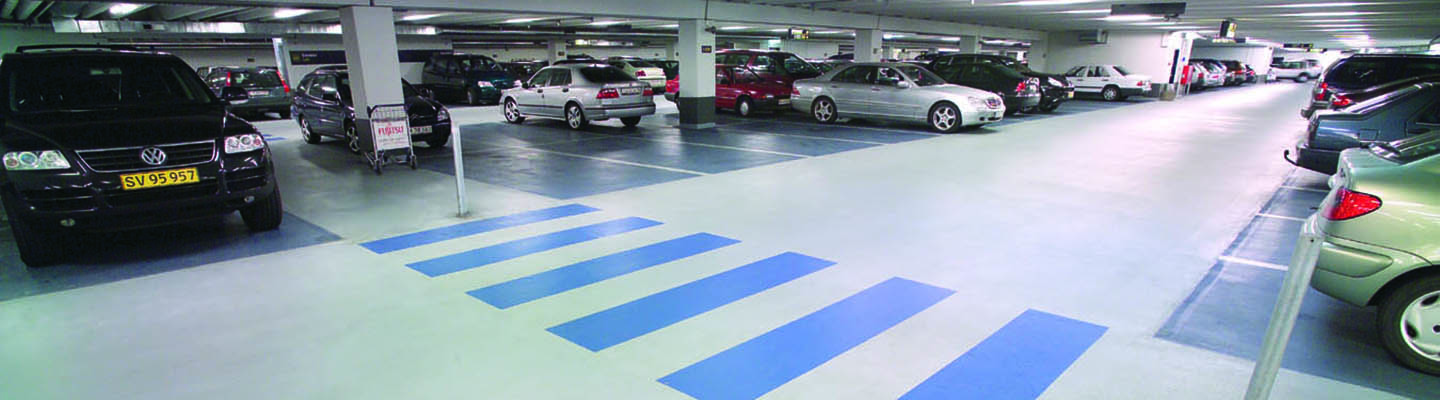

Heavy duty car park deck coating system designed for multi storey car parks for exposed and intermediate decks. The system has a build-in layer of membrane and a strong and very durable top layer. The system offers excellent crack bridging properties and flexibility, and is OS 11 A certified.

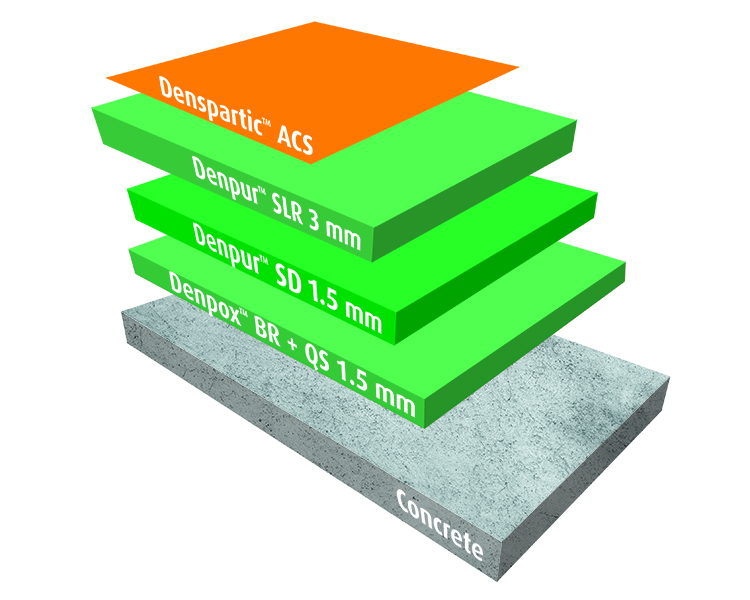

LAYER | PRODUCT | CONSUMPTION (kg/m²) | INTERMEDIATE | THICKNESS (mm) | APPLICATION |
---|---|---|---|---|---|
Primer | Denpox BR | 1.0 - 1.5 | Full broadcast QS 0.3 - 0.8 mm | Approx 0.5 - 1.5 | Notched rubber squegee |
Membrane | Denpur SD | 1.5 - 2.0 | None | min. 1.5 | Notched rubber squegee and spike roller |
Wear Layer | Denpur SLR | 1.5 - 2.5 | Full broadcast QS 0.3 - 0.8 mm | min. 3.0 | Notched rubber squegee |
Top coat | Denspartic ACS | 0.6 - 0.9 | None | Approx 0.5 - 0.7 | Rubber squegee and paint roller |
Properties
Value
System thickness
Aproxx 4 - 5 mm
Adhesive strength at Tnorm DIN EN 1542
≥ 3.1 N/mm2 (≥ 1.5 N/mm2)
Adhesive strength after freeze-thaw with de-icing salt DIN EN 13687-1 and -2
2.4 N/mm2 (≥ 1.5 N/mm2)
Dynamic crack bridging (-20°C) DIN EN 1062-7
llT+V (B3.2)
Grip and slip resistant DIN EN 13036-4, DIN 51130
57 Skt (≥ 55 Skt) R11-V4 and R12-V6
Chemical resistance DIN EN 13529
Test liquids DiBT No. 1, 3, 10
Abrasion resistance (H22 Wheel) DIN ISO 9352, ASTM D 1044
2.100 mg/1000 U (≤ 3.000)
Impact resistance DIN EN ISO 6772-2
4 Nm - no cracks
Fire class EN 13501-1
Bfl-s1
Carbon dioxide permeability DIN EN 1062-6
Class lll > 1.200 m (> 50 m)
Water vapour permeability DIN EN ISO 7783-1 and -2
Class lll > 200 m (> 50 m)
Water absorption coefficient DIN EN 1062-3
< 0.01 kg/m2 x h0.5 (<0.1)
