(8-10 mm)
A combi-elastic sports floor system with excellent bounce and comfort due to the soft and resilient liquid PU membrane. The floor offers very high comfort and safety level and is very durable and capable to withstand high mechanical stress. The floor is therefore recommended for sports facilities, schools, dance halls, playgrounds and fitness centers and other areas where chock and sound absorbing properties are required.
To provide a combi-elastic sports floor with high comfort and safety level. Typical uses are sports facilities, schools, dance halls, playgrounds and fitness centers.

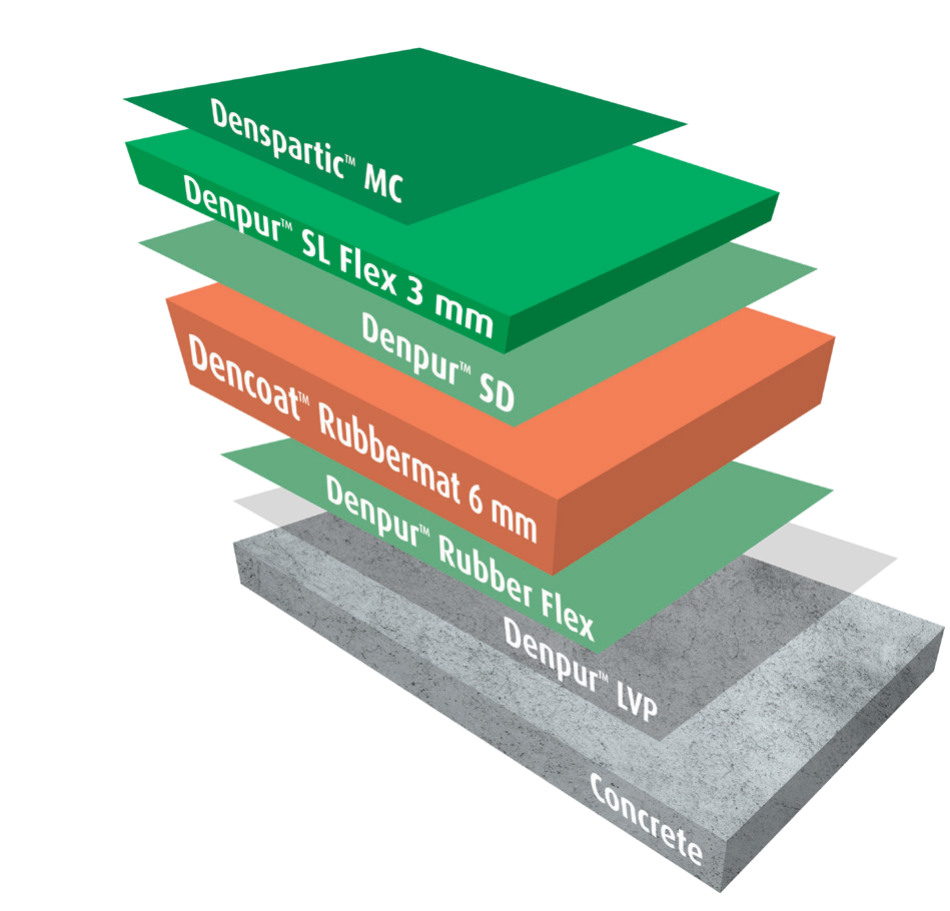

LAYER | PRODUCT | CONSUMPTION (kg/m²) | INTERMEDIATE | THICKNESS (mm) | APPLICATION |
---|---|---|---|---|---|
Primer | Denpur LVP | 0.3 - 0.5 | QS scatter 0.3 - 0.8 mm | Min 0.3 | Rubber squegee and trowel |
Rubber mat | External | N/A | Denpur Rubber Flex | 6.0 | Solid mat + Denpur SD for filling |
Wear layer | Denpur SLR Flex | min. 4.0 | None | 3.0 | Rubber squegee and spike roller |
Top coat | Denspartic MC/CMC | 0.1 - 0.15 | None | Min 0.1 | Paint roller |
Properties
Value
System thickness
Approx. 8 - 10 mm
Fire class EN 13501-1
Bfl-s1
Anti-slip according to DIN 51130
R 10
Sounddamping
20 dB
VOC according to EN 13419
Pass
Abrasion resistance according to EN 660-2 = 1999
Group P
Chemical resistance
See Denpur resistance list
Physiologically harmless (DIN EN 71 part 3)
Pass
Decline after static depression according to EN 433: 1994
0.08 mm
Resistance to office wheel wheels according to EN 425
No damage
Impact resistant ISO 6272
Class I
UV Color stability (indoor and outdoor)
Yes
Shore DIN 53505
(A) 80
Compatible with underfloor heating
Yes
