Denpox Compact

(3-5 mm)

A three pack, solvent free epoxy resin based flooring material. Denpox Compact 3-5 mm is ideal for industrial areas, which are subject to heavy mechanical and chemical wear, with high hygienic demands. At the same time the floor is easily cleanable and therefore very suitable for industrial production, chemical production, slaughterhouses, food industry, breweries, etc.








Benefits

  • Seamless and Hygienic Finish
  • Very Good Chemical Resistance
  • Low Maintenance Cost
  • Non Slip Finish if required
  • High Abrasion Resistance
  • High Impact Resistance
  • Solvent Free; Low Odour
  • Attractive Appearance
  • Easy to clean and sterialise

Applications

To provide a medium to heavy duty, easy to clean, chemical resistant flooring. Smooth finish glossy or matt surface. Typical uses are dry and wet process areas, manufacturing, packaging and warehousing areas subjected to heavy wear and pallet truck traffic.

Scope of use

  • Food industry
  • Breweries

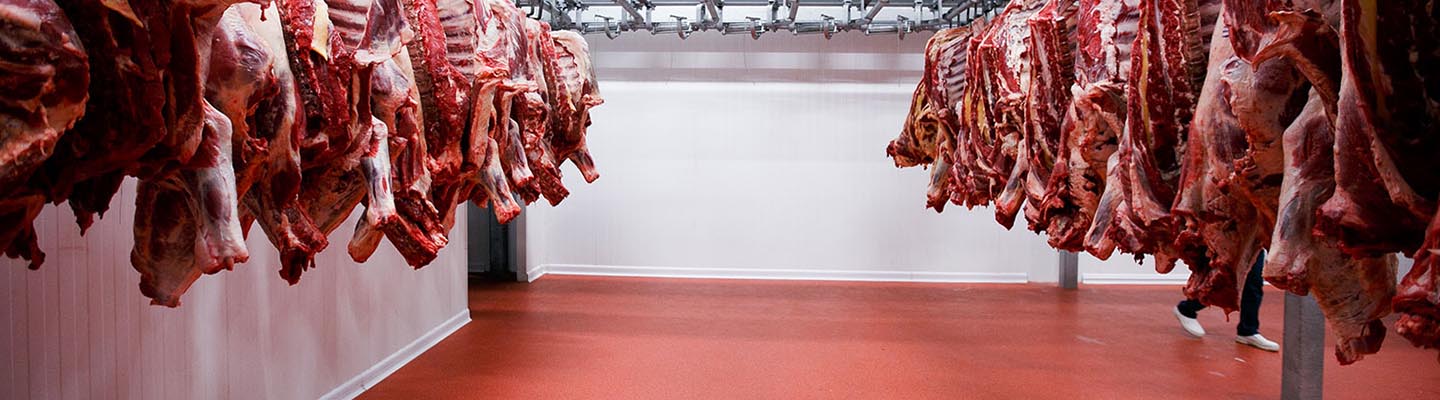

  • slaughter houses
  • Chemical plant processing

Application conditions

  • Temperature 10ºC to 30ºC, best 15 to 20ºC, max. moisture content in the concrete subfloor 5% by weight.

Appearance

  • Denpox Compact is a smooth multicoloured floor which can be produced with a matt or glossy finish.

Temperature Resistance

  • Denpur Compact is resistant to temperature cycles up to 70°C. Extended periods at these temperatures and above will make material susceptible to chemical attack and abrasion wear.

Life Expectancy

  • 10 - 15 years.

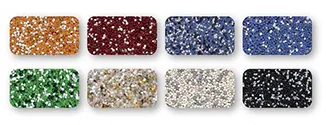

Colours

  • See separate color chart.
Denpox Compact
Actalia
HACCP
CE

System Build-up

LAYER PRODUCT CONSUMPTION (kg/m²) INTERMEDIATE THICKNESS (mm) APPLICATION
Primer Denpox Primer 0.3 - 0.5 sand scatter (optional) Min 0.3 Rubber squegee and paint roller
Wear layer Denpox TBR + Colour Quartz 1.5 + Colour Quartz Powerfloat to compact 3.0 - 4.0 Notched rubber squegee
Top coat Denpox TTC 0.5 - 1.0 None 0.5 - 1,0 Rubber squegee and paintroller
Mat Coat Denspartic MC 0.1 - 0.2 None Min 0.1 Paint roller

Technical Data

Properties

Value

Fully cured at 20°C

7 days

Applied thickness

3,0 - 5.0 mm

Water Permeability

Nil – Karsten test (impermeable)

Hardness

SHORE D 80

Compressive strength

40 MPa

Reaction to fire

Bfl-s1

Bond strength

>1.5 MPa

Temperature resistance

Up to 70°C at 4 mm

Thermal expansion coefficient

< 38 ppm

Abrasion resistance

50 mg / 1000 cycles (Taber Abrader)

Thermal conductivity

< 0,6 W/m·K

Anti-slip according to DIN 51130

R9 – R13

Food Contact

No contamination

Colours
