Denpur Park Deck OS 8

(1.5-2.5 mm)

Denpur Park Deck coating system for ramps, spirals and underground garages with pedestrian and vehicle traffic and for slip resistant industrial floors with medium to heavy load. According to DIN EN 1504-2 and DIN V 18026, class OS 8.










Benefits

  • Economic coating system for car park deck
  • Seamless and jointfree application for reliable waterproofing
  • Suitable for concrete slabs in contact to ground
  • High wear & abrasion resistance
  • Good chemical resistance (oil, de-icing salt, petrol, diesel)
  • Slip resistant surface for car and pedestrian traffic
  • Available in many colours
  • In ≥ 1.5 mm according to DIN EN 13813
  • In ≥ 2.5 mm according to DIN EN 1504-2 and DIN V 18026
  • Fire resistance class Bfl-S1

Applications

A medium duty car park deck coating system designed for indoor parking areas and open multi-level parking houses. The system consists of an epoxy base layer and a strong and very durable top layer, and is OS 8 certified.

Scope of use

  • Parking decks
  • Driving ramps
  • Loading areas

Application conditions

  • Temperature 10ºC to 30ºC, best 15 to 25ºC, max. moisture content in the concrete subfloor 5% by weight.

Appearance

  • Denpur Park Deck is a coloured antislip Park Deck system

Temperature Resistance

  • Denpur Park Deck is resistant to temperature cycles up to 90ºC dry heat and 80ºC. wet heat. Extended periods at these temperatures and above will make material susceptible to chemical attack and abrasion wear.

Life Expectancy

  • 10 - 15 years.

Colours

  • See separate color chart.
Denpur Park Deck OS 8
Park Deck OS 8
CE

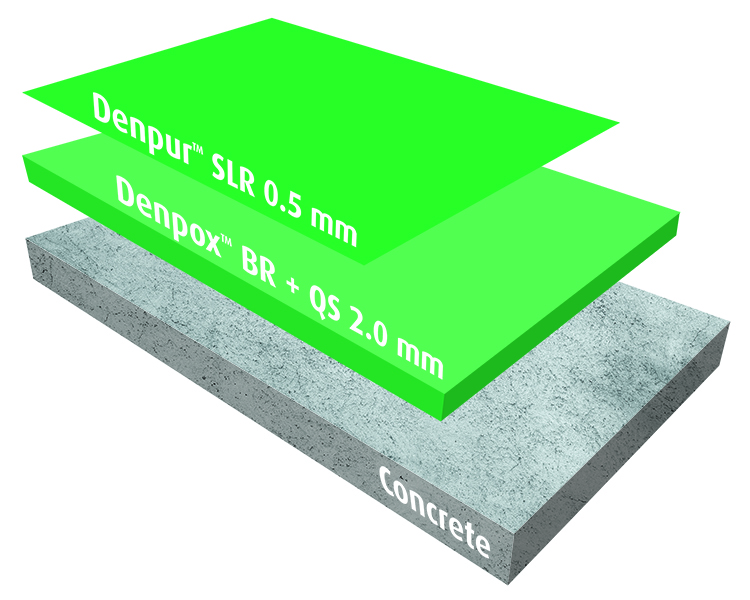

System Build-up

LAYER PRODUCT CONSUMPTION (kg/m²) INTERMEDIATE THICKNESS (mm) APPLICATION
Primer Denpox BR 0.5 - 0.8 Full broadcast QS 0.3 - 0.8 mm Approx 1.0 - 1.5 Notched rubber squegee
Top coat Denpur SLR 0.6 - 0.9 None 0.5 - 0.7 Rubber squegee and paint roller

Technical Data

Properties

Value

System thickness

Aproxx 1.5 - 2.5 mm

Adhesive strength at Tnorm DIN EN 1542

≥ 4.3 N/mm2 (≥ 2.0 N/mm2)

Adhesive strength after freeze-thaw with de-icing salt DIN EN 13687-1 and -2

2 ≥ 4.3 N/mm2 (≥ 2.0 N/mm2)

Dynamic crack bridging (-20°C) DIN EN 1062-7

NPD

Grip and slip resistant DIN EN 13036-4, DIN 51130

60 Skt (≥ 55 Skt) R11-V4 and R12-V6

Chemical resistance DIN EN 13529

Test liquids DiBT No. 1, 3, 10

Abrasion resistance (H22 Wheel) DIN ISO 9352, ASTM D 1044

1.903 mg/1000 U (≤ 3.000)

Impact resistance DIN EN ISO 6772-2

4 Nm - no cracks

Fire class EN 13501-1

Bfl-s1

Carbon dioxide permeability DIN EN 1062-6

Class lll > 2.500 m (> 50 m)

Water vapour permeability DIN EN ISO 7783-1 and -2

Class lll > 200 m (> 50 m)

Water absorption coefficient DIN EN 1062-3

< 0.01 kg/m2 x h0.5 (<0.1)

Colours

Yellow
Buff
Red
Blue
Dark Green
Dark Grey
Light Grey
White
