Dencryl Bridge Rail

(3-4 mm)

Waterproofing membrane under rail ballast
Dencryl Bridge Rail provides seamless waterproofing and extreme impact and indentation resistance under rail ballast. When required by specification, a proprietary ballast mat can be placed. Dencryl Bridge Rail can be used with new construction, restoration or replacement rail bridge and grade separation applications. The Dencryl Bridge Rail membrane may also be used without protection board. Dencryl Bridge systems are only installed by authorised and approved applicators.





Benefits

  • Will resist rain and snow within 45–60 minutes of installation
  • Bond of membrane in excess of concrete tensile or cohesive strengths.
  • Flexibility sufficient to bridge cracks in excess of 3.5 mm in well below freezing conditions.
  • Very easily repaired if damaged.
  • Extreme impact resistance to rail ballast.
  • Rapid setting and curing enables rapid handover.

Applications

Bridges are continuously exposed to severe stresses and typical factors affecting their longevity, include inadequate protection specified at design phase, quality and handling of concrete and/or steel, physical and chemical exposure, climatic conditions, traffic types and frequency and regularity and quality of maintenance. Dencryl Bridge Deck Waterproofing systems provide 100% effective seamless waterproofing thereby denying entry of water, chloride and de-icing salts from permeating into and percolating through the structural concrete deck and thus preventing the steel reinforcement corroding. This also includes corrosion inhibition of orthotropic steel decks etc. where these are the decks of choice.

Scope of use

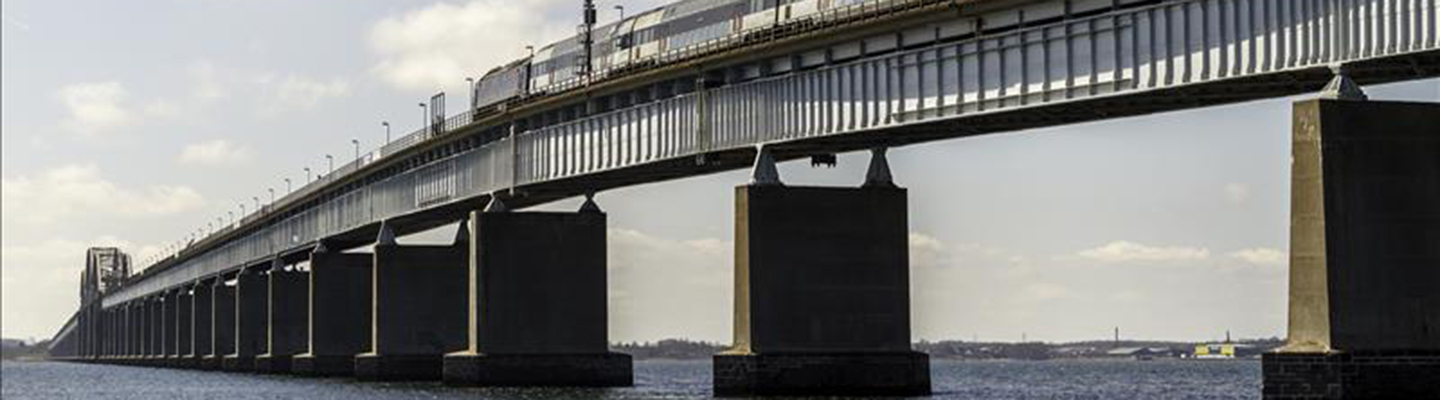

  • Train Bridges

Application conditions

  • Temperature -30ºC to 30ºC, best 15 to 25ºC, max. moisture content in the concrete subfloor 5% by weight.

Appearance

  • Dencryl Bridge Rail is a waterproofing membrane under rail ballast

Temperature Resistance

  • Dencryl Bridge Rail is resistant to temperature cycles up to 80°C. Extended periods at these temperatures and above will make material susceptible to chemical attack and abrasion wear.

Life Expectancy

  • more than 30 years

Colours

  • See separate color chart.
Dencryl Bridge  Rail
CE
Bridge Deck OS 8

System Build-up

LAYER PRODUCT CONSUMPTION (kg/m²) INTERMEDIATE THICKNESS (mm) APPLICATION
Primer Dencryl P11/P12 (Depending on substrate) 0.3 - 0.5 Light sand scatter 0.3 - 0.8mm on wet surface Min 0.3 Rubber squegee and paint roller
Membrane Dencryl M42 Min 2.8 None Min 2.0 Notched rubber squegee
Tack coat Dencryl B24 0.3 - 0.5 sand scatter (optional) Min 0.3 Rubber squegee and paint roller

Technical Data

Properties

Value

Fully cured at 20°C

2 hours

Applied thickness

3 - 4 mm

Water Permeability

Nil – Karsten test (impermeable)

Hardness

SHORE D ≥40

Compressive strength

25 MPa

Reaction to fire

Dfl-s1

Bond strength

>1.5 MPa

Temperature resistance

Up to 80°C at 6 mm

Thermal expansion coefficient

<40 ppm

Abrasion resistance

50 mg / 1000 cycles (Taber Abrader)

Thermal conductivity

< 0,4 W/m·K

Anti-slip according to DIN 51130

R9 – R13
