Denpox Structure

(6-15 mm)

A three pack, solvent free epoxy resin based flooring system. Denpox Structure 6-15 mm is ideal for areas, where decorative surfaces are wanted. The floor is very easy to maintain and easily cleanable and makes the working environments presentable. It is being recommended for usage in for instance exhibition rooms, show rooms, shopping rooms and corridor areas, etc.








Benefits

  • Many colors, patterns, logos, designs and drawings can be included
  • Low Maintenance Cost
  • Solvent Free; Low Odour
  • Attractive Appearance
  • Seamless & Clean Look

Applications

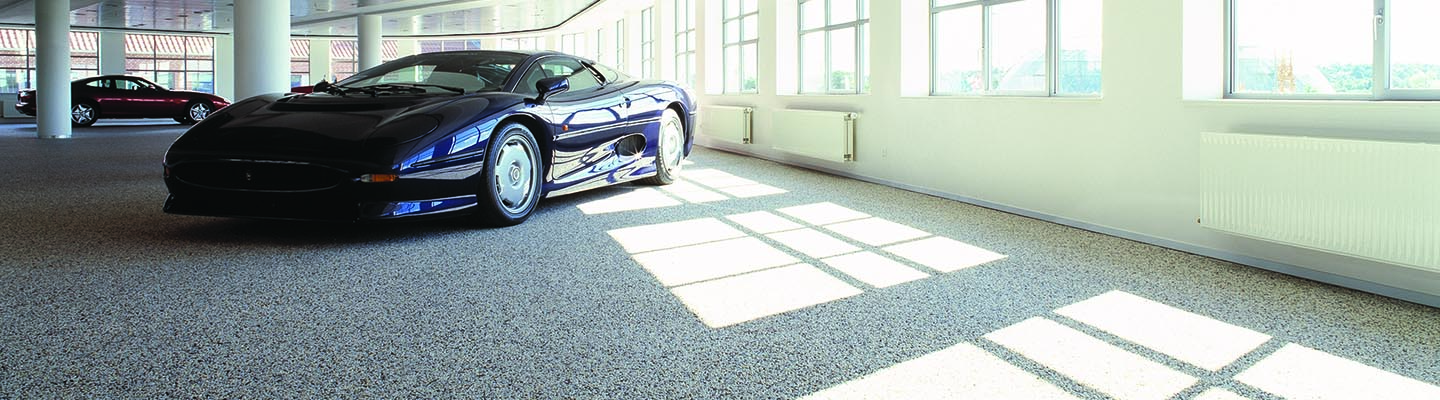

Decorative and wear resistant stone floors for receptions, exhibition areas, shops and show rooms. All kind of decorative effects are possible by varying the coloured and natural stone mix. Not recommended for areas exposed to heavy soiling and large physical load.

Scope of use

  • Exhibitions & Showrooms
  • Corridors
  • Shops & boutiques
  • wetzones around swimming pools

Application conditions

  • Temperature 10ºC to 30ºC, best 15 to 25ºC, max. moisture content in the concrete subfloor 5% by weight.

Appearance

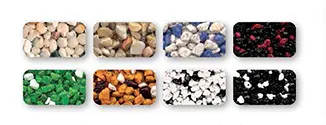

  • Denpur Structure is a decorative floor build up with coloured or natural stones which may be varied as required.

Temperature Resistance

  • Denpur Structure is resistant to temperature cycles up to 70°C. Extended periods at these temperatures and above will make the material susceptible to chemical attack and abrasion wear.

Life Expectancy

  • 10 - 20 years.

Colours

  • See separate color chart.
Denpox Structure
CE

System Build-up

LAYER PRODUCT CONSUMPTION (kg/m²) INTERMEDIATE THICKNESS (mm) APPLICATION
Primer Denpox Primer 0.3 - 0.5 sand scatter Min 0.3 Rubber squegee and paint roller
Wear layer Denpox TCC + aggregate 3.0 - 4.0 + aggregate Powerfloat to compact 6.0 - 15.0 depending on aggregate Screedbox and trowel board

Technical Data

Properties

Value

Fully cured at 20°C

7 days

Applied thickness

6 - 15 mm

Water Permeability

N/A

Hardness

SHORE D 80

Compressive strength

40 MPa

Reaction to fire

Bfl-s1

Bond strength

>1.5 MPa

Temperature resistance

Up to 90°C at 15 mm

Thermal expansion coefficient

< 38 ppm

Abrasion resistance

50 mg / 1000 cycles (Taber Abrader)

Thermal conductivity

< 0,6 W/m·K

Anti-slip according to DIN 51130

R9 – R13

Food Contact

No contamination

Colours
